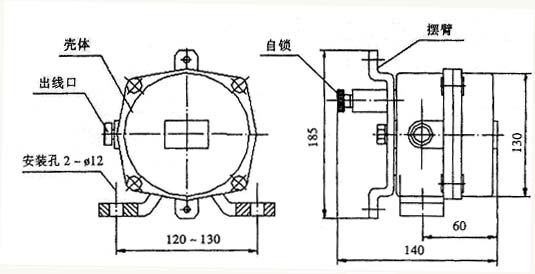

LLP4-Z two-way rope switch outline structure and installation diagram
Pull rope switch device use:
This series of two-way rope switch is mainly used for conventional belt conveyor, shuttle conveyor, skirt conveyor, bucket elevator, packaging production line, stacking / reclaiming system, crane, excavator, ship loading and unloading system. A protective device for on-site emergency parking of equipment such as horizontal feeders. When an emergency occurs, the pull rope switch can be pulled anywhere along the line to issue a shutdown signal to protect the person and equipment.
Pull rope switch device working principle: LLP4-Y two-way rope switch
The two-way rope switch is divided into two types, I type II, and the type I is automatically reset after the action. After the Type II action, there is a self-locking device (locking pin), which needs to be manually pulled out and the switch can be used again. This piece is a two-way action. The drawstring can be installed at both ends of the drawstring arm. When the tape machine runs and needs to stop, the field worker pulls the drawstring to make the arm turn a certain angle. After the work switch is touched, the alarm can be issued simultaneously. And stop the two sets of signals to achieve the purpose of preventing and controlling equipment and operator safety.
Pull rope switch device description:
â—The pull switch is two-way touch, which can be installed in the middle of the conveyor or at both ends:
â—Universal installation design allows the cable switch to be mounted on the top of the conveyor stringer or on both sides;
â—Sturdy cast aluminum casing with IP65 protection, special surface treatment for special environment:
â—The integral cover makes the wiring and switch adjustment convenient and simple, without disassembling the switch, and the structural part is compact in design;
â—Available accessories, including plastic coated wire rope, rope clamps and wire rope support rings.
Pull rope switch device exterior structure:
Pull cord switchgear installation and wiring:
1. The rope switch is installed in pairs on the left and right sides of the tape machine. The intermediate frame of the mounting bracket and the tape machine is fixed by bolts or by welding. The position should be lower than the tape and convenient for the on-site staff. It is advisable to have a distance of about 50m between the two rope switches.
2, the rope is recommended to use plastic coated steel wire rope, (or ordinary steel wire rope 1XW19-4 (5)-150, wire diameter 4-5mm can be). The wire rope is fixed with a rope card (6KTH), and a bracket is installed every 3m to avoid excessive winding of the wire rope and ensure reliable operation of the rope. Under the premise of satisfying the normal operation of the switch, tighten the rope as much as possible to reduce the sag of the wire rope.
3. For the climbing belt conveyor, the switch spacing and the length of the rope should be shortened as much as possible.
Precautions
1. Cut off the main power supply first, then use the universal meter to measure the live line. The switch must be installed at one end of the live line.
2. Cut the fire wire at the appropriate place, there are two joints, and the pull switch also has two joints.
3. Peel the two joints of the live wire to expose the wire, and connect them to the two joints of the switch.
4. Cut off the long wire in the connected joint to prevent the two wires from colliding with the short circuit.
5. Unscrew the cover of the cable switch and you can see that there is a metal shaft with a hole at one end.
6. There is also a hole in the side of the plastic case of the pull switch. Firstly, pull the pull wire through the hole of the plastic case to introduce the pull wire into the pull switch, and then introduce one end of the pull wire into the rotating shaft, tie it, and shorten the cable after the knot is too long. That's it.
7. Finally, screw the cover of the cable switch to prevent electric shock.
